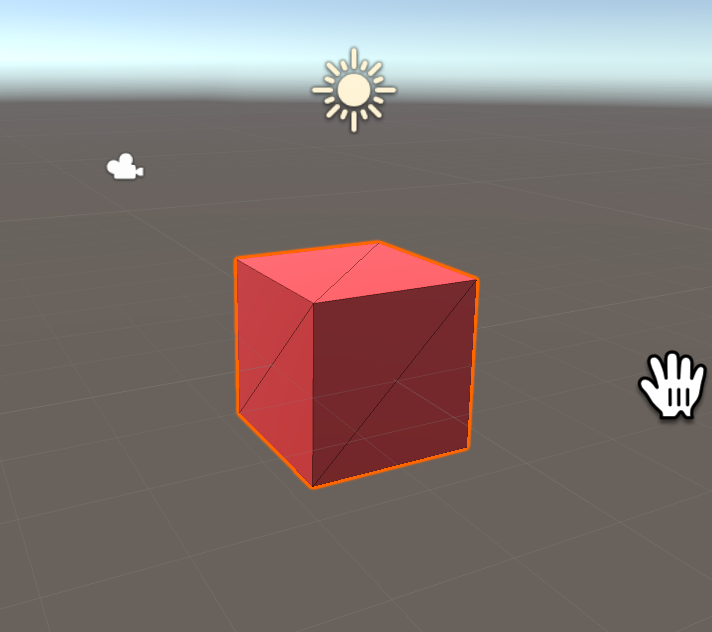

用代码创建一个cube-知识点（vertices、triangle、uvs）

资源大湿 · 发表于 2018-8-1 10:08

[code=csharp]using System.Collections;
using System.Collections.Generic;
using UnityEngine;
/// <summary>
/// Draw AC ube. MDOE BY U3DCHINA.COM
/// </summary>
public class DrawACube : MonoBehaviour {
  public GameObject cube;
  // Use this for initialization
  void Start () {
MeshFilter mf = cube.GetComponent<MeshFilter> ();
Mesh mesh = mf.mesh;
Vector3[] vertices = new Vector3[]{
   //front
   new Vector3(-1,1,1),
   new Vector3(1,1,1),
   new Vector3(-1,-1,1),
   new Vector3(1,-1,1),

   //top
   new Vector3(-1,1,-1),
   new Vector3(1,1,-1),
   new Vector3(-1,1,1),
   new Vector3(1,1,1),

   //right

   new Vector3(1,1,1),
   new Vector3(1,1,-1),
   new Vector3(1,-1,1),
   new Vector3(1,-1,-1),
   //left

   new Vector3(-1,1,-1),
   new Vector3(-1,1,1),
   new Vector3(-1,-1,-1),
   new Vector3(-1,-1,1),
   //back

   new Vector3(1,1,-1),
   new Vector3(-1,1,-1),
   new Vector3(1,-1,-1),
   new Vector3(-1,-1,-1),
   //bottom

   new Vector3(-1,-1,1),
   new Vector3(1,-1,1),
   new Vector3(-1,-1,-1),
   new Vector3(1,-1,-1)

};
int[] triangles = new int[]{
   0,2,3,
   3,1,0,

   0+4,2+4,3+4,
   3+4,1+4,0+4,

   0+4*2,2+4*2,3+4*2,
   3+4*2,1+4*2,0+4*2,

   0+4*3,2+4*3,3+4*3,
   3+4*3,1+4*3,0+4*3,

   0+4*4,2+4*4,3+4*4,
   3+4*4,1+4*4,0+4*4,

   0+4*5,2+4*5,3+4*5,
   3+4*5,1+4*5,0+4*5,
};
//UVs//
Vector2[] uvs = new Vector2[]
{
   //front face// 0,0 is bottom left, 1,1 is top right//
   new Vector2(0,1),
   new Vector2(1,1),
   new Vector2(0,0),
   new Vector2(1,0),

   new Vector2(0,1),
   new Vector2(0,0),
   new Vector2(1,1),
   new Vector2(1,0),

   new Vector2(0,1),
   new Vector2(0,0),
   new Vector2(1,1),
   new Vector2(1,0),

   new Vector2(0,1),
   new Vector2(0,0),
   new Vector2(1,1),
   new Vector2(1,0),

   new Vector2(0,1),
   new Vector2(0,0),
   new Vector2(1,1),
   new Vector2(1,0),

   new Vector2(0,1),
   new Vector2(0,0),
   new Vector2(1,1),
   new Vector2(1,0)
};
mesh.Clear ();
mesh.vertices = vertices;
mesh.triangles = triangles;
mesh.uv = uvs;
mesh.RecalculateNormals ();
  }

  // Update is called once per frame
  void Update () {

  }
}
[/code]

资源大湿 · 发表于 2018-8-1 10:20

记住triangles 顺时针绘制
